Glucose syrup processing machinery

Processing Capacity : 10-300tons/24 hours
Application Scope : rice and corn conversion to glucose syrup technology
WhatsApp : +86 13193768681
Email : infomachine88@163.com
Phone : +86 13193768681
infomachine88@163.comleave message
Introduction



    We all know that glucose production from starch ,which is the famous technolgy  in the world. Glucose production is using the corn starch /potato starch/ wheat starch/ rice starch etc as feeding material, With double ensyme method to produce glucose.

     Below is process of glucose production from starch, and contains all the machine of glucose production from starch  during the glucose syrup production:

 About glucose manufacturing plant, there are some production solution and technical standard, use the annual capacity 50,000 tons syrup as example:

1. Production method: double enzyme method for starch hydrolysis

2. Production schedule: 300 working days each year, 166.66ton glucose syrup each day. The workers shift 8 hours a day, three shifts a day, each group production capacity 55.56t

3. Raw material: corn starch-starch content 85.4%, moisture 14%, fat(dry material) 0.1%, protein (dry material) 0.4%, gravity 0.1%. Other type starch also suitable.

4. Product specifications: use corn starch can make glucose, fructose and maltose as your select, sida Company one set syrup equipments can produce this three type starch syrup.

5. Enzyme standard: high temperature resistance α-enzyme, activity 20000u/g, cost 8u/g. Saccharification enzyme activity 50000u/g, cost 200u/g. Isomerusm enzyme activity>360u/g.

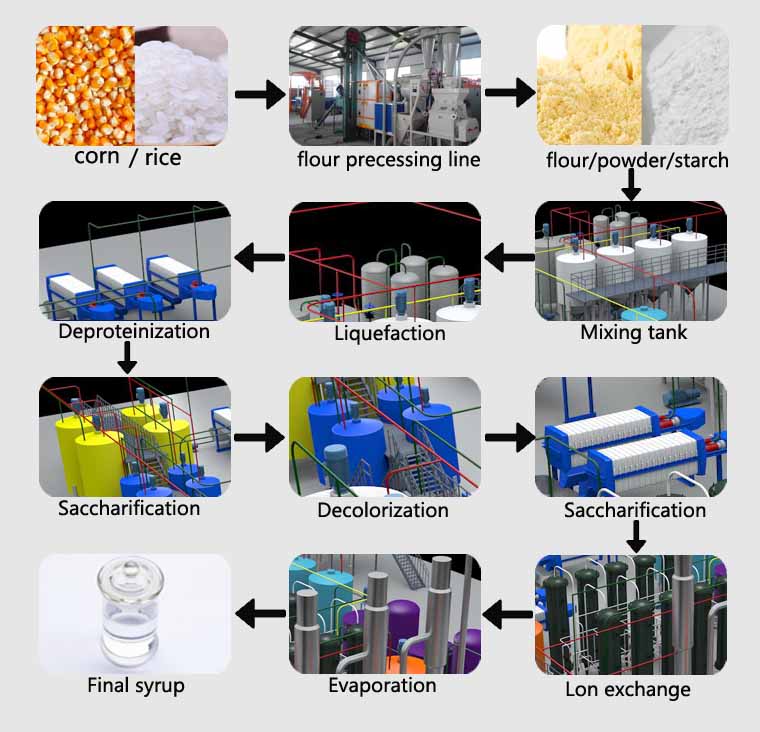

       Glucose is further processing products of starch. Glucose is produced by hydrolysis of starch. Glucose production line flowchart as bellow: Starch→mixing process→liquefaction process→deproteinization process→saccharification process→decoloration process→decarburization process→ion exchange process→evaporation process→liquid glucose. Next is the main machinery adopted in the glucose manufacturing plant and its function introduction:

Glucose syrup processing machine.jpg

Glucose syrup processing process

      Glucose manufacturing plant used are various size glucose syrup production tanks (mixing tank, liquefaction tank, saccharification tank, decoloration tank), jet cooker, filter press, ion exchange column and evaporator. Tanks are very important in glucose manufacturing plant, because all the procedures must be finished in closed environment, no touching of air. To make food grade liquid glucose as final products, all tanks must be made of stainless steel. During process of glucose making, acid, alkali and enzyme etc., are added with starch slurry in the tanks for further reaction; therefore, the tanks must be resistant to corrosion and high temperature.

      Jet cooker is key equipment in liquefaction process of glucose manufacturing plant. Jet cooker consists of starch slurry inlet, hot vapor inlet, vapor-liquid mixing chamber, diffusion tube and buffer tube. In 1st jet cooking hot vapor enters into the chamber and mix with starch slurry, and finish gelatinization process of starch in short time.

Gelatinization provides better environment for further liquefaction. Then 2nd jet cooking will complete the liquefaction well and comes out liquid dextrin.


       Filter press is the necessary equipment used in glucose manufacturing plant. It is used in deproteinization process and decarburization process. Filter press machine applies theory of liquid-solid separation, which can separate solid impurities from liquid solution. The deproteinization process will separate the protein and other impurities from liquid dextrin by filter press. After that, the liquid dextrin will be pumped to next process, the protein cake will be left for sale. In decarburization process, activated carbon (added in decoloration process) is insoluble in water, and then we can use filter press machine to finish decarburization process. The filter removes the activated carbon as well as removes organic impurities from the sugar solution.

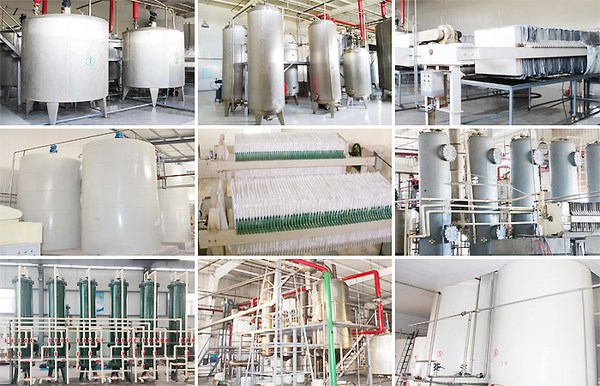

Main machine in glucose manufacturing plant.jpg

Main machine in glucose manufacturing plant


    Ion exchange column is deionizing equipment that is used in glucose manufacturing plant. After the water-insoluble impurities and organic impurities in the sugar liquid are removed, there still contain many inorganic impurities dissolved in water. These impurities exist in the form of cations and anions in water. The purpose of ion exchange is to remove these water-soluble inorganic impurities.


In glucose manufacturing plant, syrup evaporator is used to remove excess water and get final glucose syrup in certain density. Three-effect evaporator is commonly used, which can make full use of heat steam. Usually the density of liquid glucose is 26% before evaporation. And after the evaporation, glucose syrup density is normally between 72% - 75%, which is better for long time storage.

Glucose syrup processing machine.jpg

Glucose syrup processing machine
